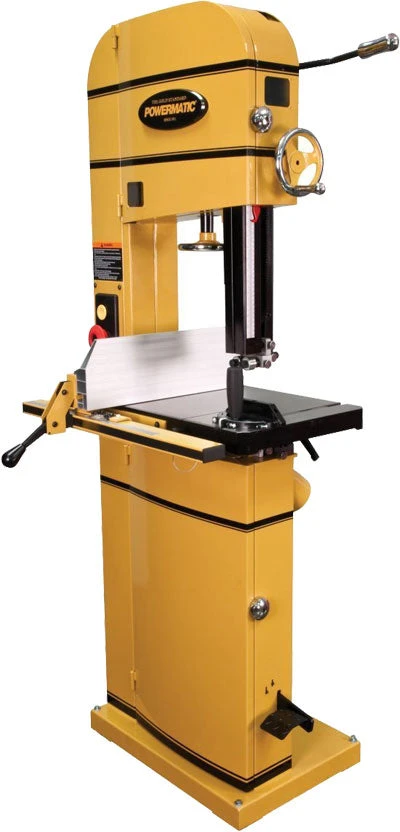

Powermatic 1791500 PM1500 Bandsaw

Standard Equipment:

• PM1500 Bandsaw – 1791500

Optional Accessories:

• Band Saw Blades

Specifications:

• Cutting Capacity Width: 14-1/2″
• Cutting Capacity Height: 14″
• Blade Length: 153″
• Blade Speed: 3,100 SFPM
• Table Size (L x W): 21-1/2″ x 16″
• Blade Width: 1/8″ – 1″
• Table Height from Floor: 40″
• Maximum Saw Blade Width: 1″
• Minimum Saw Blade Width: 1/8″
• Table Tilt: 10° Left, 45° Right
• Miter Gauge Positive Stops: 45°, 90°
• Dust Collection Minimum CFM Required: 600 CFM
• Dust Port Outside Diameter: 4″
• Motor Power: 3HP
• Motor Phase: 1
• Motor Voltage: 230V
• Prewired Voltage: 230V
• Motor Current: 12A

Features:

• The Accu-Fence has complete adjustability for aligning to blade and squaring to table.
• Positive locking cam with pressure adjustment.
• Oversized side plate can be used in the horizontal or vertical position.
• Solid steel resaw pin for optimum ridgidity.
• Blade tension release with electrical interlock prevents the bandsaw from starting when the blade is de-tensioned or released.
• Heavy duty upper wheel support and tracking mechanism for smooth operation.
• Solid cast iron upper and lower wheels create the momentum needed for heavy resaw.
• High end blade guides with tool less adjustment provide stability, increasing cut accuracy.
• Four sided blade guard for optimum protection.
• Integrated foot brake stops a coasting blade.
• Magnetic Switch protects the motor from harm due to potential electrical supply issues.
• Heavy duty 3 horsepower motor provides power needed for all projects.
